Vặn vít dạng góc

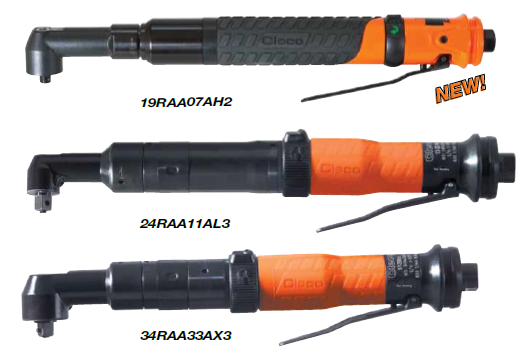

Súng vặn ốc dạng góc Apex- cleco 19 Series - Reversible – Clecomatic Clutch

Model Number		Torque Range		Free Speed	Length	Weight	Height	Side to	Air Consumption
Model Number		Tool Range (Nm)	With Std. Spring (Nm)	Free Speed	Length	Weight	Height	Center	Air Inlet LPT	Min Hose	SCFM
1/4” Sq. Dr.	3/8” Sq. Dr.	Tool Range (Nm)	With Std. Spring (Nm)	RPM	mm	Kg	mm	mm	Air Inlet LPT	Min Hose	SCFM
19 Series - Reversible – Clecomatic Clutch
19RAA02AM2		0.6 - 2.1	0.6 - 2.1	2400	303	0.8	27	9	1/8”	3/16”	11
19RAA02AH2	19RAA02AH3	0.7 - 2.4	0.7 - 2.4	2100	316	0.8	30	13	1/8”	3/16”	12
19RAA03AM2		0.6 - 3.1	0.6 - 2.4	1650	310	0.8	27	9	1/8”	3/16”	13
19RAA03AH2	19RAA03AH3	0.7 - 3.4	0.7 - 2.7	1450	321	0.8	30	13	1/8”	3/16”	14
19RAA04AM2		1.4 - 4.7	1.4 - 4.7	950	305	0.8	27	9	1/8”	3/16”	15
19RAA05AM2		1.4 - 5.7	1.4 - 4.7	570	316	0.8	27	9	1/8”	3/16”	16
19RAA06AH2*	19RAA06AH3	1.5 - 6.0	1.5 - 5.4	850	316	0.8	30	13	1/8”	3/16”	17
19RAA07AH2*	19RAA07AH3	1.5 - 6.8	1.5 - 5.4	500	326	0.9	30	13	1/8”	3/16”	18
19RAA09AH2*	19RAA09AH3	2.0 - 8.5	3.4 - 8.5	500	326	0.9	30	13	1/8”	3/16”	19
19RAA11AH2*	19RAA11AH3	2.0 - 11.3	3.4 - 11.3	340	312	1.0	30	13	1/8”	3/16”	20
19RAA12AH2*	19RAA12AH3	2.0 - 11.3	3.4 - 11.3	200	326	0.9	30	13	1/8”	3/16”	21
