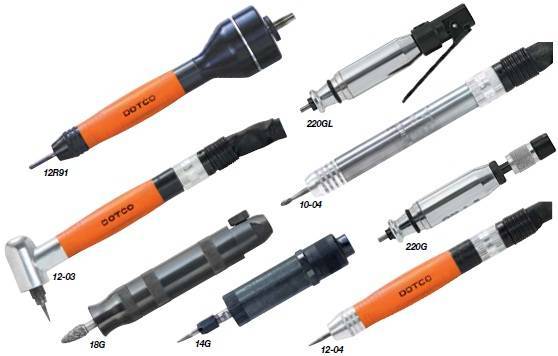

Precision Grinders

50,000 – 100,000 RPM
0.044 – 0.15 kW
■ Variety of configurations to meet all your application needs
■ Ideal for precision deburring and metal removal
■ Turbine, governed and nongoverned models available
■ 12-03 right angle gearless model to reduce maintenance and downtime

Model Number			Free Speed rpm	Abrasives Capacity	Type Housing	Weight kgs	Length mm	Collet Size	Air Size Inlet
With Collet Guard	Without Collet Guard	Wrenchless Chuck✢
With Collet Guard	Without Collet Guard	Wrenchless Chuck✢
10-90 Series – 0.06 hp (0.044 kW) – Front Exhaust – Turbine♦ 10L9500-36
	10R9000-03		100,000	3/16” Carbide Bur, 3/16” Diamond Pin	A	0.2	137	3mm	1/8”
	10R9000-08		100,000	3/16” Diamond Pin	A	0.2	137	1/8”	1/8”
10-95 Series – 0.1 hp (0.074 kW) – Front Exhaust – Turbine♦
10L9500-36			80,000	1/4” Carbide Bur, 3/16” Diamond Pin	A	0.9	147	1/8”	1/4"
12R91 Series W/O Overhose – 0.1 hp (0.074kw) – Governed – Front Exhaust – Turbine♦
12R9180-03*			65,000**	1/8” Carbide Bur, 1/8” Diamond Pin	C	0.2	147	3mm	1/8”
12R9180-08*			65,000**	1/8” Carbide Bur, 1/8” Diamond Pin	C	0.2	147	1/8”	1/8”
12R91 Series with 4ft (1.2m) Overhose – 0.1 hp (0.074kw) – Governed – Front Exhaust – Turbine♦
12R9180-43*			65,000**	1/8” Carbide Bur, 1/8” Diamond Pin	C	0.2	147	3mm	1/8”
12R9180-48*			65,000**	1/8” Carbide Bur, 1/8” Diamond Pin	C	0.2	147	1/8”	1/8”
12-03 Series – 0.1 hp (0.074 kW) Gearless Right Angle – Rear Exhaust
	12R0380-13*		80,000	1/4” Carbide Bur, 1/4” Diamond Pin	C	0.1	140	3mm	1/8”
	12R0380-18		80,000	1/4” Carbide Bur, 1/4” Diamond Pin	C	0.1	140	1/8”	1/8”
10-04 Series – 0.1 hp (0.074 kW) – Rear Exhaust
10R0401-13*	10R0400-13*		60,000	1/4” Carbide Bur, 1/4” Diamond Pin	A	0.1	147*	3mm	1/8”
10R0401-18*	10R0400-18	10R0412-18	60,000	1/4” Carbide Bur, 1/4” Diamond Pin	A	0.1	147*	1/8”	1/8”
12-04 Series – 0.1 hp (0.074 kW) – Rear Exhaust
12R0410-13*	12R0400-13*		60,000	1/4” Carbide Bur, 1/4” Diamond Pin	C	0.1	147	3mm	1/8”
12R0410-18*	12R0400-18*		60,000	1/4” Carbide Bur, 1/4” Diamond Pin	C	0.1	147	1/8”	1/8”
220G Series – 0.1 hp (.074 kW) – Push-Pull Start – Front Exhaust
220G-600-C2			60,000	1/4” Carbide Burr	A	0.1	118	1/8”	1/8”
220GL Series – 0.1 hp (.074 kW) – Lever Start – Front Exhaust
220GL-600-C2			60,000	1/4” Carbide Burr	A	0.1	118	1/8”	1/8”
14G Series – 0.1 hp (0.074 kW) – Front Exhaust
14G-810			50,000	1/4” Carbide Bur, 1/2” Mounted Wheel	S	0.1	99	1/8”	1/8”
18G Series – 0.2 hp (0.15 kW) – Front Exhaust
18G-810D			40,000	1/4” Carbide Bur, 1/2” Mounted Wheel	S	0.7	150	1/4”	1/8”
