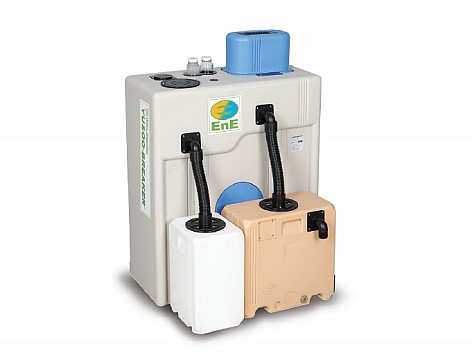

YUSOO-BREAKER Oil-Water Separator
For the best economic treatment of Compressed Air condensate
Unique and easy method to change Filters
Environmentally friendly Treatment of Condensate
Gravity Separation
What is condensate?
Condensate generated by lubricated type Air compressor is comprised of atmospheric borne water vapor and lubricant from the compression process. Post compression, condensate is dropped from the air stream in the cooling, refrigerated drying and filtration phases of the air treatment process.
How much is it generated and why must it be disposed of?
From an air compressor of 100 horse-power capacity, about 45,880 liters of condensate is generated (Pressure: 7kg/cm2, operation time: 24h/day, operation days: 365 days) per year.
In general, from an oil supply type air compressor, emulsion-state condensate containing oil is produced, and if it is discharged without processing in accordance with standard, then it causes contamination to natural environment.
The YUSOO BREAKER is designed to separate Mineral Oil, Semi and Fully Synthetic Lubricants from condensate
Enhancing corporate image
Corporate image requires not only for producing good products but also for various things such as social contribution and environmental friendly, etc. Especially, corporate image on environmental friendly is very important part.
Best processing plan for condensate
Our oil-water separator, YUSOO-BREAKER can dramatically reduce the high cost in processing condensate, and provides satisfied result in improving work efficiency and corporate image with small investment.
The YUSOO-BREAKER new series is the best functional product made with our long experience and accumulated technology, and user can enjoy satisfactory convenience and efficiency in our product.
Follow-up service system
We are operating an excellent follow-up service system in order for our users not to experience difficulty in purchasing consumables and in managing product, etc. after sales other than those imported products and similar ones.
YUSOO-BREAKER offers superior cost effectiveness and functions
▶ No energy Cost
▶ Environmental friendly product
▶ Low maintenance ,only change Filter
▶ All models series can be equipped with Heating unit for cold weather applications
▶ Reduce disposal cost
▶ Simple Installation
▶ High operational reliability
Processing
Condensate emulsified by oil flows into the pressure relief chamber, and some pressure applied to condensate is removed by the pressure drop action of the chamber (Pressure drop is essential in order to generate gravity separation smoothly).
Oil is floated up through 1st gravity separation from the condensate stored in the pre-tank, and this oil is collected into oil collection container through oil drain pipe (Some oil which is not emulsified must be removed because it affects much to the life of the filter).
The condensate removed oil is purified during passing through the multi-stage filter container and then finally discharged.
Filters to change easily per Model
▶ Improved Quality filter has high efficiency and easy to change
▶ Reliable solution for Condesnate
▶ Internally divided into Multi-stages to improve capability
▶ High Satisfactory Performance Filters
Simple filter replacement
Other companies’ oil-water separator has filter inside of it therefore there are many cases for condensate to flow, or to splash clothes with it, or to contaminate the floor during replacement of filter.
However, YUSOO-BREAKER new series has filter at the outside of it therefore it can be simply and cleanly replaced without flow of the condensate out.
Devices for high performances
