Quantum Series Electric Chain Hoist Ingersoll Rand
1/8 – 5 metric ton Lifting Capacity

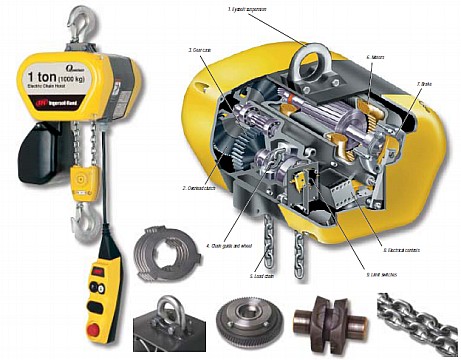

Features:
1. Eyebolt suspension:
An eyebolt suspension is standard with motorized and plain trolleys. Unlike rigid suspensions, the eyebolt suspension allows the hoist to pivot and align itself to the direction of load pull, reducing stress and wear. (Hook suspension can be substituted).
2. Overload clutch for asset protection:
The overload clutch is factory set to limit Quantum from lifting loads in excess of 150% of rated hoisting capacity.
3. Gear case:
Smooth and compact design with a helical/spur gear combination providing “grab free” movement and quiet, reliable operation. Optimum lubrication – Gears are lubricated with a semiliquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods. Quantum will even work upside down.
4. Chain guide and wheel:
A “floating” chain guide precisely feeds chain onto a machined matched five-pocket chain wheel. This system insures smooth, jam resistant operation, and extends load chain, and chain wheel life.
5. Optimized load chain:
Quantum load chain is precision formed from alloy steel, case hardened and
zinc plated. The plating is an IR proprietary process, which resists corrosion better than any standard plating offered for load chain. Controlled elongation: Quantum chain is engineered to elongate a minimum of 10%. This ability to stretch reduces the possibility of catastrophic failure under sudden loading.
6. Motors:
High starting torque – Quantum motors are a totally enclosed non-ventilated (TENV)
squirrel cage design. The H4 duty classification of the three phase models allows for 300 starts and 30 minutes “on time” per hour. Class F insulation allows a total thermal rating of 145° C at a 1.0 service factor, instead of the more common Class B insulation of 120° C. Quantum motors can take the heat! Phased to your needs – Single phase motors are available as 115 or 230 volt. Because single-phase motors are subject to low voltages that create higher motor temperatures, these Quantum hoists are equipped with “klixons,” bimetal heat switches that prevent motor burnout. Three phase motors – are available in 230, 380, 460, and 575 volts, single and dual speeds. The 230/460 volt, single speed motors are field reconnectable. Dual speed motors – feature 4, 5, or 6 to 1 high to low speed ratios instead of the typical 3 to 1 ratios. The advantages are unsurpassed load control, reduced cycle time and improved productivity. The overload clutch and Class F insulation eliminate the cost of “klixons.”
7. Brake:
Metal discs stack up against wear – Quantum has a state-of-the-art AC motor brake employing all-steel discs. Multiple stacking significantly increases braking surface area, reducing wear and extending life. This system eliminates the breakage common with fiber discs and the heavier steel springs and DC solenoids they require. Quantum brake discs are guaranteed for the life of the hoist.
8. Electrical controls:
Safety-first pendent – Quantum’s safety-first pendent control handles are comfortable and fit securely in the operator’s hand. Each low voltage (42 volt) control handle integrates a large, red emergency stop button. Operating buttons are clearly marked with high contrast arrows, feature soft push action, and are horizontally aligned for easier operation.
Emergency shut-off – Activated from the pendent handle, the mainline contactor disconnects the power to the hoist and trolley motor providing “shutoff protection” in an emergency situation.
Easy accessibility – Quantum enclosures are weatherproof, NEMA 3R rated. The removal of just four fasteners (slot-head on the electrical parts cover and allen-head on the mechanical parts cover) allows access to components. Since electrical and mechanical components can be accessed separately, service is quick and clean.
9. Limit switches:
Fail-safe limits – Quantum limit levers are recessed in the hoist enclosure. This clean, obstruction-free assembly virtually eliminates accidental activation of switches. Upper and lower switches are activated by the hook and end stop, eliminating time-consuming adjustments.
Design Features:
• UL and C-UL listed (except 380 volt units). Complete unit listed number is 5D48.
• Meets I-R’s interpretation of ANSI B30.16 and pertinent European FEM standards.
• Small compact light weight, high tensile strength, die cast aluminum housing.
• NEMA 3R hoist enclosure and NEMA 4X pendent enclosure can be used outdoors.
• Universal tread trolley wheels fit tapered or flat flange beams.
• Hook, eyebolt, push trolley or motorized trolley suspensions.
• Safety lugs on all trolleys.
• Anti-tip lugs on motorized trolleys.
• Well balanced, modular design.
Options:
• Trolley brake.
• Chain container.
• External strain relief.
• Power cord lengths.
• Geared limits.
• Handy Handle.
• 110 Volt controls.
• Inertia type mechanical load brake.
• Pendent with vertical aligned buttons.
• Pendent with additional 2 or 4 aligned buttons.
• Bullard top and bottom hooks.
• Inertia type mechanical load brake. This option specifies a bolt-on inertia mechanical load brake. The inertia type brake responds to overspeed of the load. It’s similar in function to many safety devices including elevator safety brakes and automotive seat belts. If a dual brake is required this option is ideal as it does not reduce duty cycle, from heat created by drag, or require adjustment to compensate for wear.
